The Cathedral of St. Philip - Atlanta, GA

Cathedral Nave

Aeolian-Skinner, Op. 1399

(1962, tonal revisions & additions 1992)

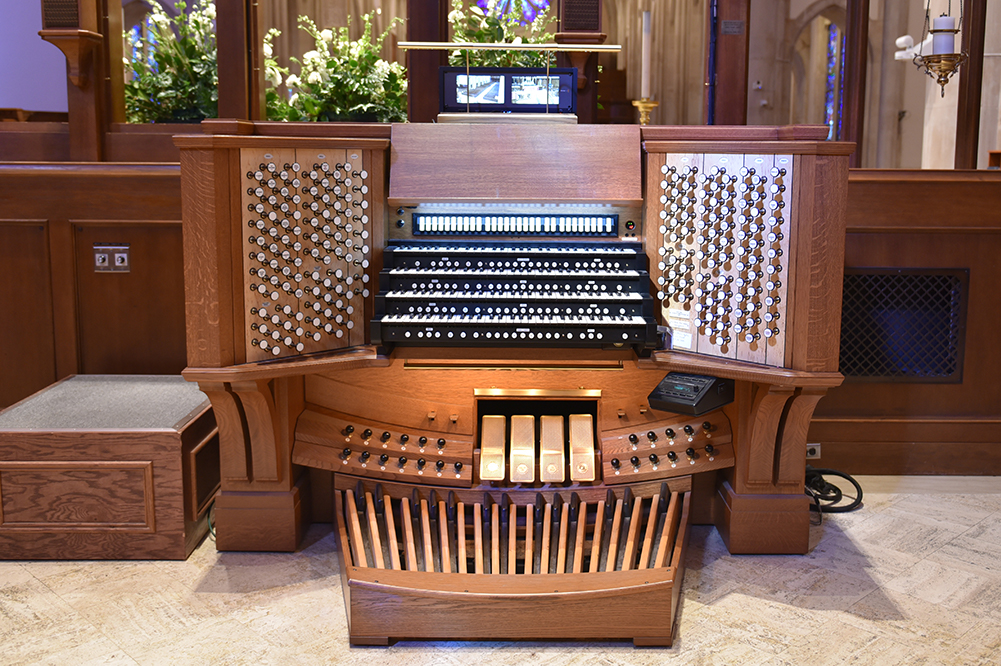

Schoenstein & Co. console (2011)

Download specifications PDF »



Great (Exposed) Manual II – 3”

16 Violon 61 pipes
8 Prinzipal 61 pipes
8 Spitzflöte 61 pipes
8 Holz Gedackt 61 pipes
4 Oktav 61 pipes
4 Rohrflöte 61 pipes
2 Super Octave 61 pipes
2 Blockflöte 61 pipes
V Cornet Positiv
IV-VI Fourniture 294 pipes
IV Scharf 244 pipes
8 Major Trumpet Solo

  Great 4’
  Great Unison Off
  Positiv on Great
  Celestial on Great



Solo (Enclosed) Manual IV – 6”

8 Violon Cello 73 pipes
8 Cello Célèste 61 pipes
4 Flute Harmonique 61 pipes
8 Major Trumpet (14”) 61 pipes
8 Tuba 61 pipes
8 English Horn 61 pipes
8 French Horn (3 octaves) 37 pipes
8 Bombarde 73 pipes

  Solo 16’
  Solo 4’
  Solo Unison Off
  Positiv on Solo
  Celestial on Solo
  Tremulant



Swell (Enclosed) Manual III – 4”

16 Cor-de-Nuit 61 pipes
8 Geigen Prinzipal 61 pipes
8 Rohrflöte 61 pipes
8 Viole de Gambe 61 pipes
8 Viole Celeste 61 pipes
8 Flauto Dolce 61 pipes
8 Flauto Celeste 61 pipes
4 Prestant 61 pipes
4 Gemshorn 61 pipes
4 Flute Harmonique 61 pipes
2 Octavin 61 pipes
IV Plein Jeu 244 pipes
III Acuta 183 pipes
16 Hautbois 61 pipes
8 Trompette 61 pipes
8 Hautbois 12 pipes
4 Clarion 61 pipes

  Swell 16’
  Swell 4’
  Swell Unison Off
  Celestial on Swell
  Positiv on Swell
  Tremulant



Positiv (Exposed) Floating – 3”

8 Pommer Gedackt 61 pipes
4 Koppel Flöte 61 pipes
2/2/03 Nasat 61 pipes
2 Octav 61 pipes
1/3/05 Terz 61 pipes
1/1/03 Larigot 61 pipes
1 Sifflöte 61 pipes
III Cymbel 183 pipes

  Cymbelstern
  Tremulant



Choir (Enclosed) Manual I – 4”

16 Gemshorn 61 pipes
8 English Diapason 61 pipes
8 Klein-Erzähler 61 pipes
8 Erzähler Celeste (TC) 49 pipes
4 Octave 61 pipes
2 Fifteenth 61 pipes
IV Mixture 244 pipes
16 Dulzian 61 pipes
8 Tuba Solo
8 Petite Trompette 61 pipes
8 Cromorne 61 pipes
4 Chalumeau 61 pipes

  Choir 16’
  Choir 4’
  Choir Unison Off
  Positiv on Choir
  Celestial on Choir
  Tremulant



Celestial (Enclosed) Floating – 4”

8 Viole Sourdine 61 pipes
8 Schwebung (TC) 49 pipes
8 Spillflöte (TC) 49 pipes
8 Flute Conique 61 pipes
8 Flute Celeste (TC) 49 pipes
4 Spillflöte 12 pipes
4 Erzähler 61 pipes
8 Menschenstimme 61 pipes
8 Orlo 61 pipes

  Celestial 4’
  Tremulant



Pedal – 4” except where noted

32 Contra Bourdon (5”) 12 pipes
16 Contra Bass 32 pipes
16 Violon Great
16 Bourdon 32 pipes
16 Gemshorn Choir
16 Cor-de-Nuit Swell
16 Contre Flute Celestial
8 Octave 32 pipes
8 Bourdon 12 pipes
8 Gemshorn 32 pipes
8 Cor-de-Nuit Swell
8 Viole Sourdine Celestial
4 Choral Bass 32 pipes
4 Nachthorn 32 pipes
4 Gemshorn 12 pipes
2 Waldflöte 32 pipes
IV Mixture 128 pipes
32 Contra Posaune (3”) 32 pipes
16 Major Trumpet Solo
16 Posaune (3”) 12 pipes
16 Dulzian Choir
16 Hautbois Swell
8 Trumpet (3”) 12 pipes
8 Petite Trompette Choir
8 Hautbois Swell
8 Cromorne Choir
4 Clarion (3”) 12 pipes
4 Petite Trompette Choir
4 Hautbois Swell



Couplers

Great to Pedal 8’
Swell to Pedal 8’
Choir to Pedal 8’
Solo to Pedal 8’
Positiv to Pedal 8’
Celestial to Pedal 8’
Great to Pedal 4’
Swell to Pedal 4’
Choir to Pedal 4’
Solo to Pedal 4’

Swell to Great 16’
Swell to Great 8’
Swell to Great 4’
Choir to Great 16’
Choir to Great 8’
Choir to Great 4’
Solo to Great 16’
Solo to Great 8’
Solo to Great 4’

Swell to Choir 16’
Swell to Choir 8’
Swell to Choir 4’

Solo to Swell 8’
Solo to Swell 4’
Solo to Choir 16’
Solo to Choir 8’
Solo to Choir 4’

Pedal Tutti: Choir 8’

Great/Choir Transfer



Mechanicals

256 Memory Levels
Sequencer – Next and Previous thumb and toe pistons
Record/Playback

Thumb Pistons
General 1-20 and cancel
Pedal 1-6 and cancel
Great 1-9 and cancel
Swell 1-9 and cancel
Choir & Positiv 1-9 and cancel
Solo & Celestial 1-9 and cancel

Reversible Thumb Pistons
Solo to Pedal
Swell to Pedal
Great to Pedal
Choir to Pedal
Positiv to Pedal

Swell to Great
Choir to Great

Swell to Choir

Full Organ

Toe Pistons
General 1-12 (duplicated)

Contra Posaune 32’ (reversible)
Contra Bourdon 32’ (reversible)

Pedal 1-6 (duplicated)

Great to Pedal (reversible)
Swell to Pedal (reversible)
Choir to Pedal (reversible)

Full Organ (reversible)
