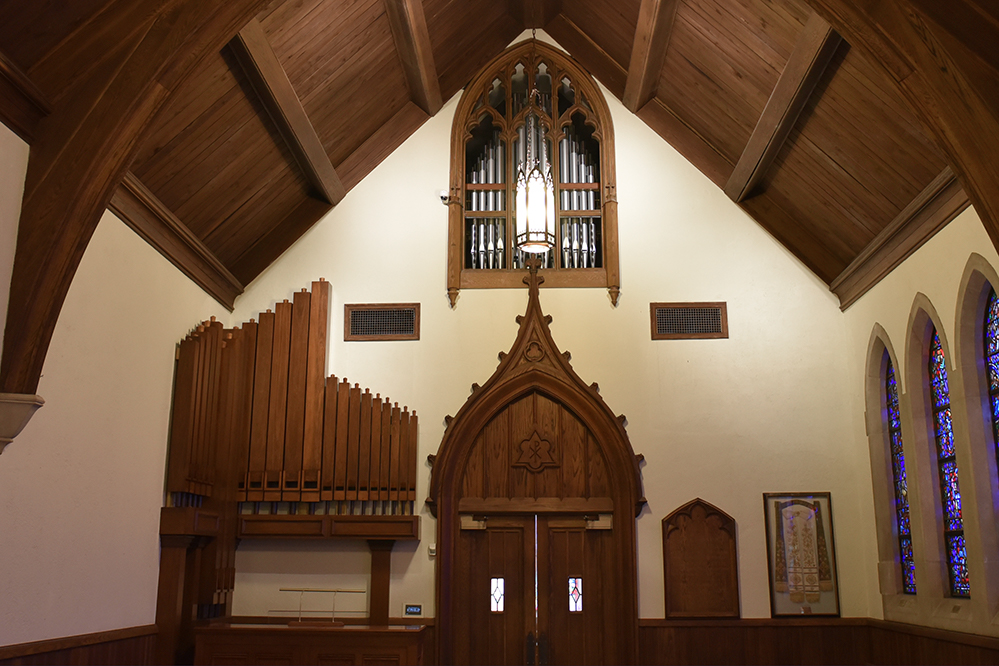

Mikell Chapel
The Thomas Ruben Jones Memorial Organ
Given to the glory of God
and in loving memory of Thomas Ruben Jones (1929-2014)
by Delbert Lowell Jacks
Schoenstein & Co., 2017
Great (I)
| 16' | Bourdon (Swell) | |
| 8' | Open Diapason | 61 pipes |
| 8' | Horn Diapason (Swell) | |
| 8' | Gamba (Swell) | |
| 8' | Gamba Celeste (Swell) | |
| 8' | Silver Flute (Swell) | |
| 8' | Chimney Flute (Swell) | |
| 4' | Principal | 61 pipes |
| 4' | Chimney Flute (Swell) | |
| 2' | Fifteenth (Swell) | |
| 2' | Mixture (III - Swell) | |
| 8' | Trumpet (Swell) | |
| 8' | Clarinet (Swell) | |
| Great | 16' | |
| Great Unison Off | ||
| Great ** | 4' |
Pedal
| 32' | Resultant | |
| 16' | Sub Bass (Bourdon Treble) | 27 pipes |
| 16' | Bourdon (Swell) | |
| 8' | Principal (Great – Open Diapason) | |
| 8' | Horn Diapason (Swell) | |
| 8' | Gamba (Swell) | |
| 8' | Chimney Flute (Swell) | |
| 4' | Fifteenth (Great – Open Diapason) | |
| 4' | Silver Flute (Swell) | |
| 16' | Contra Oboe (Swell) | |
| 8' | Trumpet (Swell) | |
| 8' | Oboe (Swell) | |
| 8' | Clarinet (Swell) | |
| 4' | Oboe (Swell) | |
| 4' | Clarinet (Swell) |
Swell (II – Expressive)
| 16' | Bourdon (Extend Chimney Flute) | 12 pipes |
| 8' | Horn Diapason | 61 pipes |
| 8' | Gamba* | 61 pipes |
| 8' | Gamba Celeste (TC)* | 49 pipes |
| 8' | Silver Flute (Chimney Flute Bass) | 49 pipes |
| 8' | Chimney Flute | 61 pipes |
| 4' | Gemshorn | 61 pipes |
| 4' | Chimney Flute | 12 pipes |
| 22/3' | Nazard (From Chimney Flute) | pipes |
| 2' | Fifteenth (Extend Gemshorn) | 12 pipes |
| 13/5' | Tierce (TC) | 42 pipes |
| 2' | Mixture (III)** | 166 pipes |
| 16' | Contra Oboe | 12 pipes |
| 8' | Trumpet* | 61 pipes |
| 8' | Oboe Horn | 61 pipes |
| 8' | Clarinet | 61 pipes |
| Tremulant | ||
| Swell | 16' | |
| Swell Unison Off | ||
| Swell** | 4' |
*Stops under Double Expression
**Mixture cut out with coupler
Couplers
Great to Pedal
Great to Pedal 4'
Swell to Pedal
Swell to Pedal 4'
Swell to Great 16'
Swell to Great
Swell to Great 4'

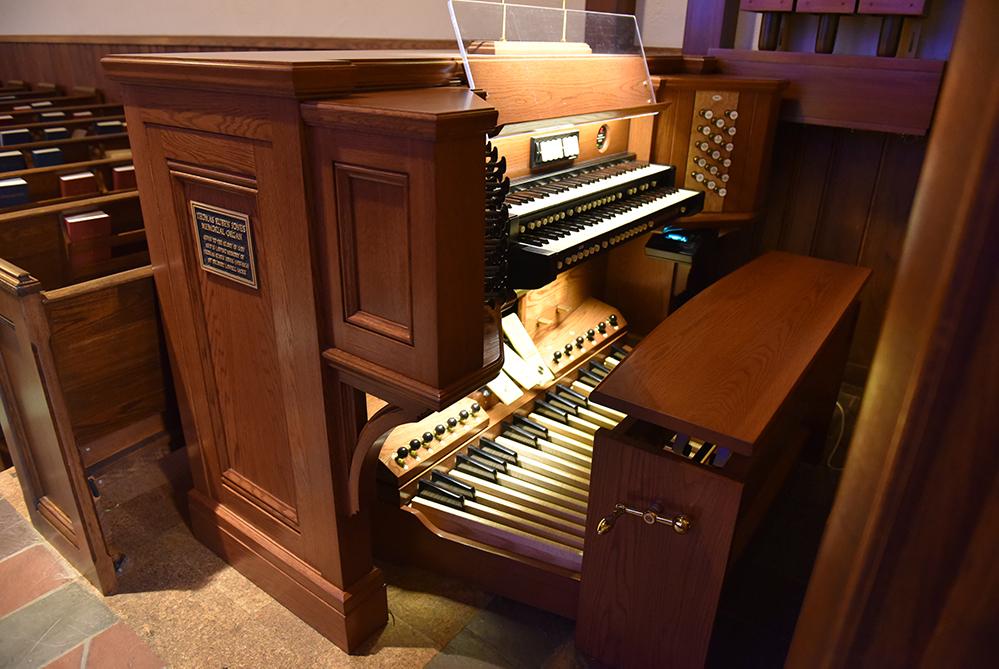

Mechanicals
Solid State Capture Combination Action:
- 256 Memories.
- 44 Pistons and toe studs.
- 5 Reversibles including Full Organ
- Programmable piston range
- Piston sequencer
Crescendo Pedal
